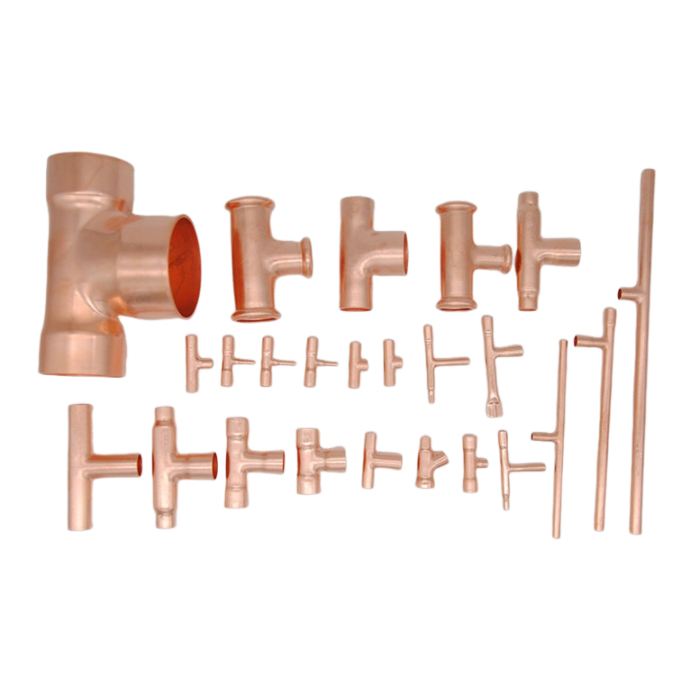

Sampeyan bisa yakin kanggo tuku Gangxin Copper Compression T Fitting sing diprodhuksi dening pabrik kita. Produk iki digawe karo teknologi perlindungan lingkungan paling anyar, Kapadhetan produk dhuwur, resistance meksa kuwat, ing baris karo ROHS lan REACH testing pangayoman lingkungan, katon ayu, ukuran instalasi trep, teknologi canggih;
Tembaga Compression T Fitting minangka fitting pipa sing penting, digunakake digunakake ing sambungan kulkas, produk pemanasan. Iki nggunakake pipa tembaga TP2 minangka bahan, nduweni konduktivitas termal sing apik lan tahan karat, sing ndadekake ing penukar panas AC, pemanas banyu lan produk liyane duwe posisi penting ing pabrik kasebut. Konduktivitas termal tembaga sing apik banget minangka bahan penting kanggo produk kulkas lan pemanasan. lan tahan karat njamin manawa produk kayata pemanas banyu duwe umur layanan luwih suwe lan luwih larang. Kajaba iku, tembaga minangka bahan sing sehat, antibakteri sing unik, sterilisasi, sifat antibakteri dadi bahan sing disenengi kanggo industri peralatan banyu kayata banyu mancur. |
Spesifikasi lan model saka Tembaga Compression T Fitting macem-macem, , kayata φ28.622 lan φ6.350.8, spesifikasi fitting pipa iki disambungake karo pipa tembaga kanthi welding, minangka komponen penting ing sambungan kulkas. pipa lan pipa pemanas banyu. Fitur produk tembaga T-tee kalebu kekandelan pipa tembaga sing digunakake gumantung saka diametere. Sing luwih gedhe diameteripun , kekandelan tembok pipa tembaga sing luwih kandel, kanggo njamin kualitas produk. , contone, ing umum, cukup nggunakake pipa tembaga kandel 1mm kanggo diameter ngisor φ22.3, lan pipa tembaga kandel 1.5mm kanggo diameter φ35 lan ndhuwur. Desain iki njamin kualitas lan daya tahan fitting. Kajaba iku, Copper Compression T Fitting uga wis lulus ROHS, sertifikasi REACH, teknologi produksi sing ketat, kalebu teknologi reresik lingkungan, ora ngrusak tembaga, tembok pipa resik, tembok njero ora ana bintik ireng, ora ana impurities. |
|
D |
A(F) |
B(F) |
C(F) |
E |
F |
G |
X |
Y |
Z |
L |
H |
T |
|
|
GX-T-01 |
4.76 |
4.86 |
4.86 |
4.86 |
6 |
6 |
6 |
6.4 |
6.4 |
8.4 |
24.8 |
14.4 |
0.41 |
|
GX-T-02 |
5 |
5.1 |
5.1 |
5.1 |
6 |
6 |
6 |
6.5 |
6.5 |
8.5 |
25.0 |
14.5 |
0.41 |
|
GX-T-03 |
6 |
6.1 |
6.1 |
6.1 |
6 |
6 |
6 |
7.0 |
7.0 |
9.0 |
26.0 |
15.0 |
0.41 |
|
GX-T-04 |
6.35 |
6.45 |
6.45 |
6.45 |
6 |
6 |
6 |
7.2 |
7.2 |
9.2 |
26.4 |
15.2 |
0.41 |
|
GX-T-05 |
7 |
7.1 |
7.1 |
7.1 |
7 |
7 |
7 |
7.5 |
7.5 |
9.5 |
29.0 |
16.5 |
0.5 |
|
GX-T-06 |
7.94 |
8.04 |
8.04 |
8.04 |
8 |
8 |
8 |
8.0 |
8.0 |
10.0 |
31.9 |
18.0 |
0.5 |
|
GX-T-07 |
9.52 |
9.62 |
9.62 |
9.62 |
9 |
9 |
9 |
8.8 |
8.8 |
10.8 |
35.5 |
19.8 |
0.55 |
|
GX-T-08 |
12.70 |
12.8 |
12.8 |
12.8 |
10 |
10 |
10 |
10.4 |
10.4 |
12.4 |
40.7 |
22.4 |
0.7 |
|
GX-T-09 |
15.88 |
15.98 |
15.98 |
15.98 |
11 |
11 |
11 |
11.9 |
11.9 |
13.9 |
45.9 |
24.9 |
0.8 |
|
GX-T-10 |
19.05 |
19.15 |
19.15 |
19.15 |
12 |
12 |
12 |
13.5 |
13.5 |
15.5 |
51.1 |
27.5 |
0.8 |
|
GX-T-11 |
22.23 |
22.33 |
22.33 |
22.33 |
13 |
13 |
13 |
15.1 |
15.1 |
17.1 |
56.2 |
30.1 |
1.0 |
|
GX-T-12 |
25.40 |
25.5 |
25.5 |
25.5 |
14 |
14 |
14 |
16.7 |
16.7 |
18.7 |
61.4 |
32.7 |
1.0 |
|
GX-T-13 |
28.58 |
28.68 |
28.68 |
28.68 |
15 |
15 |
15 |
18.3 |
18.3 |
20.3 |
66.6 |
35.3 |
1.0 |
|
GX-T-14 |
31.75 |
31.85 |
31.85 |
31.85 |
18 |
18 |
18 |
19.9 |
19.9 |
21.9 |
75.8 |
39.9 |
1.2 |
|
GX-T-15 |
34.93 |
35.03 |
35.03 |
35.03 |
20 |
20 |
20 |
21.5 |
21.5 |
23.5 |
82.9 |
43.5 |
1.3 |
|
GX-T-16 |
38.10 |
38.2 |
38.2 |
38.2 |
22 |
22 |
22 |
23.1 |
23.1 |
25.1 |
90.1 |
47.1 |
1.4 |
|
GX-T-17 |
41.28 |
41.38 |
41.38 |
41.38 |
24 |
24 |
24 |
24.6 |
24.6 |
26.6 |
97.3 |
50.6 |
1.5 |
|
GX-T-18 |
44.45 |
44.55 |
44.55 |
44.55 |
26 |
26 |
26 |
26.2 |
26.2 |
28.2 |
104.5 |
54.2 |
1.5 |
|
GX-T-19 |
50.80 |
50.9 |
50.9 |
50.9 |
28 |
28 |
28 |
29.4 |
29.4 |
31.4 |
114.8 |
59.4 |
1.8 |
|
GX-T-20 |
53.98 |
54.08 |
54.08 |
54.08 |
30 |
30 |
30 |
31.0 |
31.0 |
33.0 |
122.0 |
63.0 |
1.8 |
|
GX-T-21 |
63.50 |
63.6 |
63.6 |
63.6 |
32 |
32 |
32 |
35.8 |
35.8 |
37.8 |
135.5 |
69.8 |
2.0 |
|
GX-T-22 |
66.70 |
66.8 |
66.8 |
66.8 |
34 |
34 |
34 |
37.4 |
37.4 |
39.4 |
142.7 |
73.4 |
2.0 |
|
GX-T-23 |
79.40 |
79.5 |
79.5 |
79.5 |
36 |
36 |
36 |
43.7 |
43.7 |
45.7 |
159.4 |
81.7 |
2.0 |
|
GX-T-24 |
105.00 |
105.1 |
105.1 |
105.1 |
38 |
38 |
38 |
56.5 |
56.5 |
58.5 |
189.0 |
96.5 |
2.5 |
